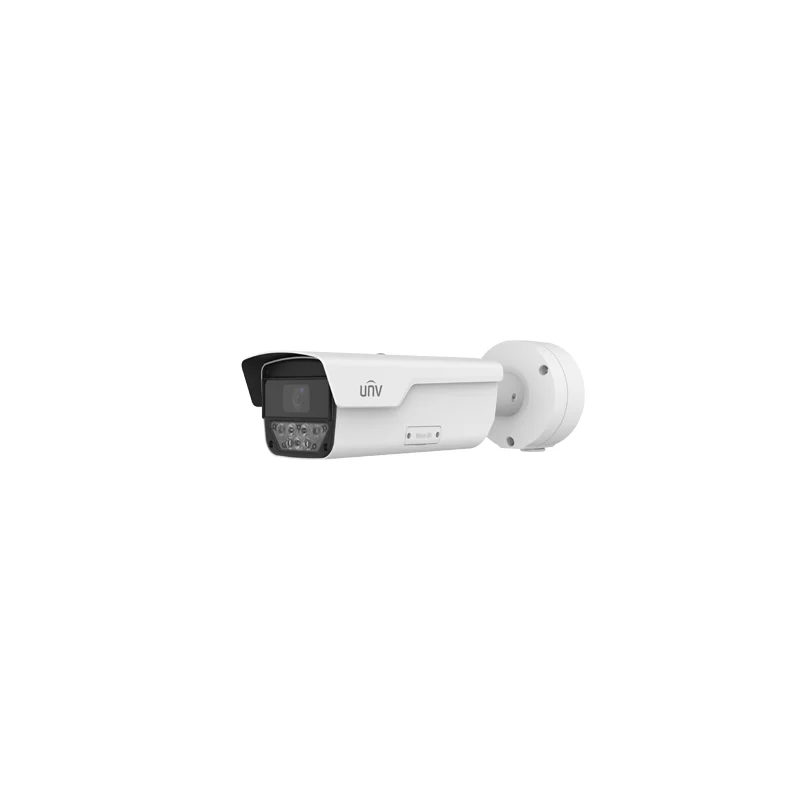

UNIVIEW LPR 3MP Motorized White Light Camera 2.8mm-12mm
The UNIVIEW LPR 3MP Motorized White Light camera is a dedicated license plate recognition camera for CCTV systems. It brings a 3 megapixel image, a motorized variable focal lens and an integrated white light into one unit, so that vehicle registration plates can be captured clearly in a wide range of situations. It is intended for installers and security integrators who need a purpose-built camera for vehicle identification rather than a general surveillance camera.
Key features
- LPR function for license plate recognition in CCTV applications
- 3 megapixel resolution
- Motorized lens with a focal length of 2.8mm to 12mm
- Remote adjustment of zoom and focus during setup
- Integrated white light for plate capture in low light
- Part of the UNIVIEW camera range
Specifications overview
- Product type: LPR camera, CCTV
- Resolution: 3 megapixel (3MP)
- Lens: motorized, 2.8mm to 12mm
- Illumination: white light, integrated
- Brand: UNIVIEW
- Article number: IPCPKC2630@Z28-P
Why a dedicated LPR camera
A standard CCTV camera records a scene, but reading a number plate at a moving vehicle requires a specific combination of resolution, lens angle, shutter behaviour and light. An LPR camera is set up for this task. The motorized lens lets the installer frame the lane exactly, so the plate occupies enough pixels to be read, and the white light supports capture when the scene is dark or when headlights and reflections would otherwise disturb the image.
Installation and setup
Mount the camera at a height and angle that gives a clear view of the registration plates on the lane. Use the motorized zoom and focus to set the field of view to the width of the entrance or the parking bay. Because the lens is motorized, adjustments can be made during commissioning, which saves time compared with manual lenses. Check the view at different times of day to confirm that the white light and image settings suit the site.
Typical uses
- Vehicle entrances and exits at car parks and business sites
- Gate and barrier control where vehicle identification is needed
- Logging of vehicle movements for site management
- Perimeter monitoring of driveways and access roads
- Upgrading an existing CCTV installation with plate capture
Points to check before ordering
Confirm that your recording or analytics platform supports UNIVIEW LPR cameras and that the required lens range suits the distance to the lane. Plan the mounting position, cable route and power supply in advance. If the site has very strong sunlight or heavy reflections, test the camera on site before final installation.
The UNIVIEW LPR 3MP Motorized White Light camera is a practical choice for projects where reliable plate images are needed as part of a wider CCTV system.
