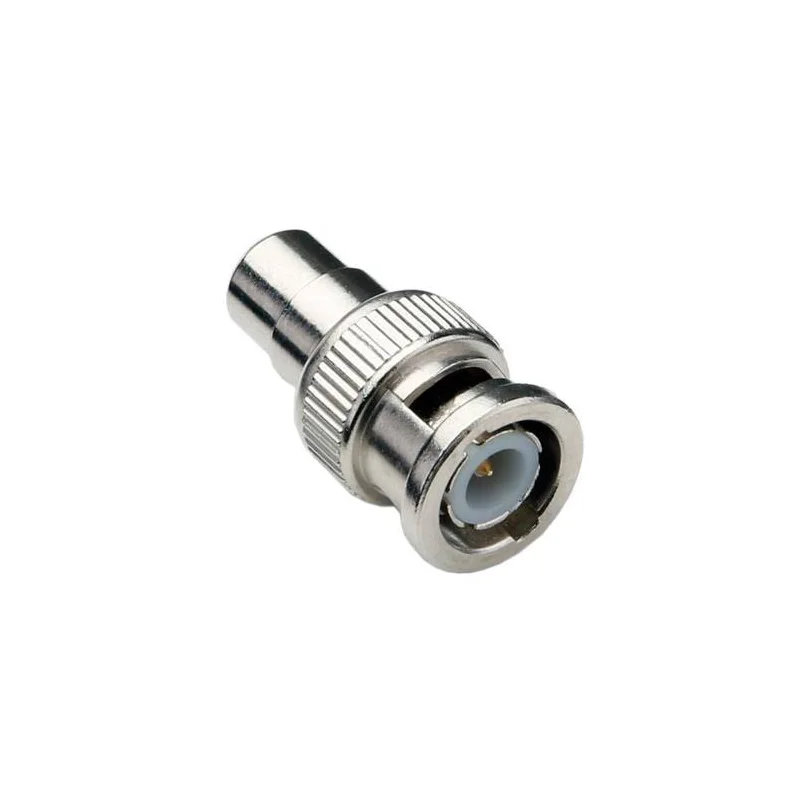

BNC Male to RCA Female Adaptor
PR-C01

BNC Male to RCA Female Adaptor

BNC Male to RCA Female Adaptor

The BNC Male to RCA Female Adaptor is a small connector that links two different cable types. It has a BNC male plug on one end and an RCA female socket on the other, so a cable or device fitted with a BNC male connector can be joined to an RCA female connection.

Adaptors like this are useful when equipment uses different connector standards and you need to bridge them without replacing cables. Instead of buying a new lead with the right ends, you can use this adaptor to make the connection quickly.

BNC connectors have a bayonet-style twist-lock fitting, which keeps the connection secure once it is turned into place. RCA connectors use a push-on design and are common on audio and video equipment. This adaptor brings those two standards together in one compact part.

The adaptor is listed in our connectors and adaptors range within tools and hardware. It suits technicians, installers and home users who regularly work with mixed equipment and need a simple, reliable way to join a BNC male connection to an RCA female socket.

Before use, check that the signal type and the equipment you are connecting are compatible with each other. An adaptor only changes the physical connector; it does not change the signal itself, so the devices at both ends should be designed to work together.

Share on:

BNC Male to RCA Female Adaptor

BNC Male to RCA Female Adaptor

The BNC Male to RCA Female Adaptor is a connector adaptor designed to join two different connector types. One end has a BNC male plug and the other end has an RCA female socket. It is intended for situations where a cable or device with a BNC male connector needs to link to equipment that uses an RCA female input or output.

Connector adaptors save time and cost when equipment is mixed. Rather than purchasing a custom lead, you can use a short adaptor to bridge the gap between two standards. This makes them a practical item for workshops, installation jobs, testing setups and general equipment hook-ups.

Key Features

  • BNC male connector on one end, with a bayonet-style twist-lock fitting
  • RCA female socket on the other end, for push-on RCA plugs
  • Compact adaptor body for simple connection between two cable types
  • Supplied as a single adaptor from the connectors and adaptors range

Specifications

  • Connector one: BNC male
  • Connector two: RCA female
  • Category: Tools and Hardware, Connectors and Adaptors
  • Product type: Connector adaptor

How the Connection Works

The BNC male end locks onto a matching BNC female socket by pushing in and turning, which holds the connection firmly in place. The RCA female end accepts a standard RCA male plug, which is pushed straight in. Because the two ends use different locking methods, take care when connecting and disconnecting so that the adaptor body is not twisted against a fixed cable.

Typical Uses

  • Connecting a BNC male cable to RCA female equipment during setup or testing
  • Adapting existing leads when a device uses a different connector standard
  • Workshop and installation work where mixed connectors are common
  • Temporary connections in the field where a full replacement lead is not practical

Before You Use It

Check that the signal type carried by your cable is suitable for the equipment at the other end. A connector adaptor only changes the physical interface. It does not convert the signal, match impedance or add any function, so both devices must be designed to work with the signal being sent.

Inspect the adaptor for damage before use, including bent pins, cracked housings or loose fittings. Damaged connectors can cause poor contact or intermittent faults. Keep the adaptor clean and store it in a dry place to protect the contacts.

Who It Is For

This adaptor suits technicians, installers, engineers and home users who regularly work with equipment that has mixed connector types. It is a simple accessory that can be kept in a toolkit or equipment drawer, ready for any job where a BNC to RCA connection is needed.

If you are unsure whether this adaptor will work in your setup, check the connector types on your existing cable and on your equipment before ordering. Matching the physical connectors and the signal type is the most reliable way to confirm that the adaptor meets your needs.
