PVC Round Box 1, 2, 3 and 8 Way 20 mm with Lid and Screws
The PVC Round Box 20 mm is a round PVC enclosure for connecting and distributing cables within conduit and trunking installations. It is available in four versions, 1-way, 2-way, 3-way and 8-way, and each is supplied with a lid and screws. This makes it a straightforward accessory for building a neat, enclosed cable connection point.
Key features
- Round PVC body for use with 20 mm conduit and trunking systems
- Available in 1-way, 2-way, 3-way and 8-way versions
- Supplied with lid and screws
- Part of the PVC Components range of conduit and trunking accessories
Choosing the right number of ways
The number of ways describes how many entry points the box offers. A 1-way box suits a single run that needs an enclosed connection point. A 2-way or 3-way box allows a few runs to meet at one location. The 8-way version is the most flexible option, giving the most entry points where several circuits or cable groups must come together.
When selecting a version, count the cable runs that will enter the box and allow for future additions if the installation may expand. Choosing a box with spare capacity can save time later.
Materials and construction
PVC, or polyvinyl chloride, is a common material for electrical installation accessories. It is lightweight, easy to handle and widely used in conduit and trunking work. The round body gives a clean appearance and works well where the box sits in view or alongside other conduit fittings.

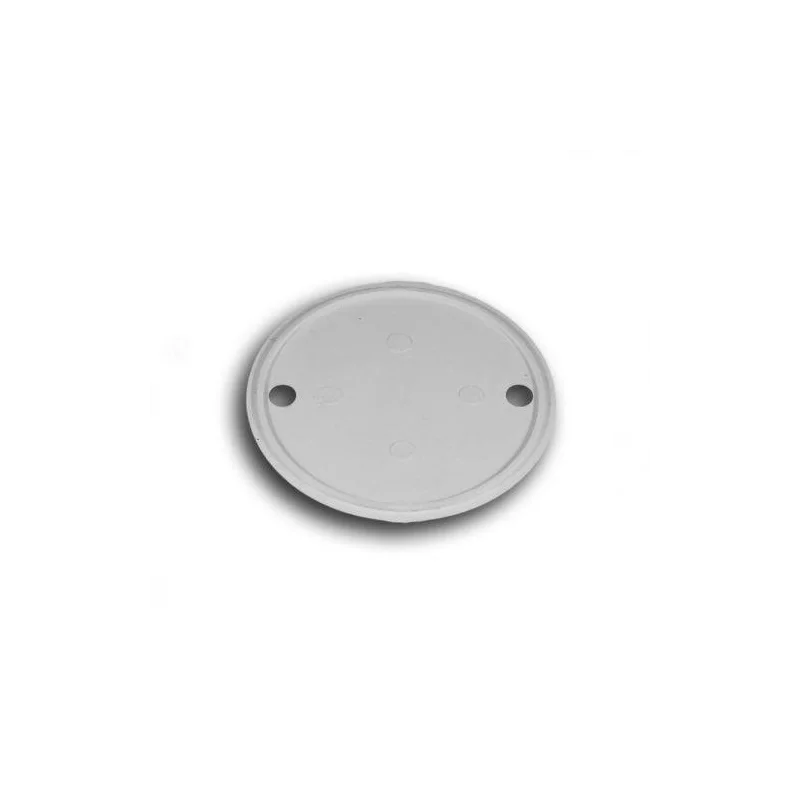

The lid protects the connections inside the box from dust and accidental contact once the wiring is complete. The screws supplied with the box are used to fix the lid in place.
Installation notes
Before installing, check that the box size and the number of ways match your conduit layout and the number of cables to be connected. Plan the position of each entry point so that conduit runs enter the box without strain. Secure the box firmly to its mounting surface, fit the lid with the supplied screws, and confirm that the lid sits flush before the installation is energised or handed over.
Installation should always follow the relevant electrical regulations and the guidance of a qualified installer. This product is a conduit accessory and does not itself include wiring, cable or protection devices.
Typical uses
The PVC Round Box is suitable for a range of general cabling tasks, including:
- Junction points in conduit runs where cables must be joined or split
- Connection points for lighting, power or alarm wiring in buildings
- Distribution points where several cable groups meet
- Tidy, enclosed endings for conduit at wall or ceiling level
- Maintenance points that need to remain accessible after installation
In security and alarm installations, a round junction box of this type is often used to tidy sensor, keypad or cable runs and to keep connections protected inside a sealed enclosure.
Summary
The PVC Round Box 20 mm with lid and screws is a practical, simple accessory for cable junctions in conduit systems. Select the number of ways that matches your installation, check the 20 mm size against your conduit, and fix the box and lid securely for a neat and protected connection point.
